1. Introduction to SharePoint Data Connector 2.0

SharePoint Data Connector is a lightweight out-of-the-box solution that provides a secure and convenient way to transfer business data between SharePoint lists and external data sources. Using SharePoint Data Connector, the data can go both ways, export SharePoint list content to an External database or import your business data to a SharePoint list from multiple External data sources.

2. Data Connector Job Management

2.1 Enter Data Connector Job Center

There are two entrances to access the Data Connector Job Center page, from Site Settings and from List Settings; both require users to have the appropriate permissions.

Click Site Settings, and then click Data Connector Settings under BoostSolutions Software. You will enter the Data Connector Job Center of the current site.

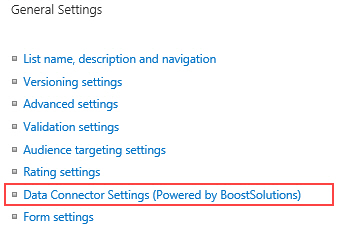

Or enter List Settings page from a list or library, and click Data Connector Settings under General Settings.

2.2 Create a job

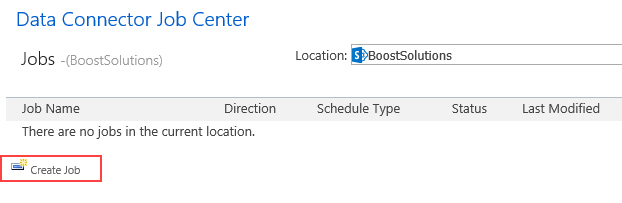

To create a job, click Create Job in the Data Connector Job Center page.

2.2.1 Type a job name

Type a unique name for this job.

2.2.2 Specify the direction

Select a direction for data connection in the dropdown list.

2.2.3 Specify a list

Specify a list or library which you want to connect to external data. The settings of the List may vary according to the direction.

• If Direction is From list to external data

When the direction is set as From list to external data, then the list is the data source, and external data is the target.

To configure a list:

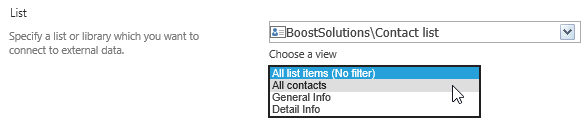

1. In the Select a list dropdown list, choose a list or library as the data source.

2. In the Choose a view dropdown list, select a view to filter items.

If you select All list items (No filter), it means that all items of list will be exported to external data source.

• If Direction is From external data to list

When the direction is set as From external data to list, then the list is the target, and external data is the source.

You can choose an existing list or create a new list as the target for data connection.

Select one of the options:

Choose an existing list: Select a list as the target list in the site tree.

Create a new list: Create a new list as the target list. The list type will be created as Customized List.

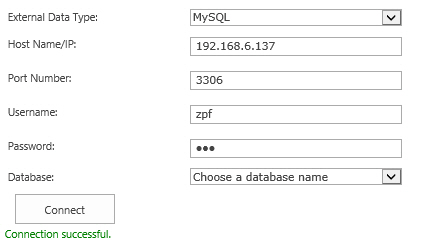

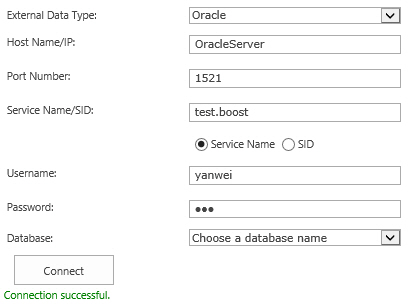

2.2.4 Specify the external data

Data Connector supports multiple popular external data systems, such as Microsoft SQL Server 2000-2019, Oracle Database and My SQL 5.0 Database, SharePoint 2007/2010/2013/2016/2019/Subscription Edition.

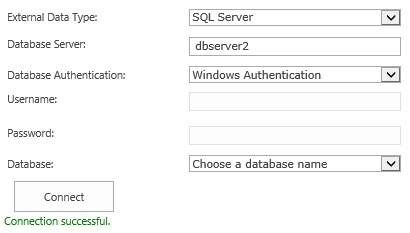

SQL Server

Note: For SQL Server, Windows Authentication will use the application pool account as the connection account.

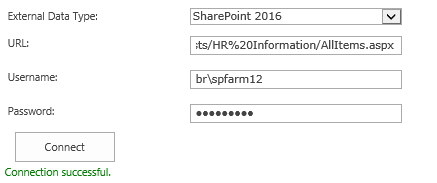

SharePoint 2007/2010/2013/2016/2019

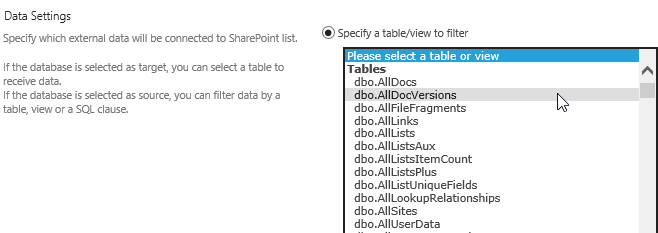

2.2.5 Specify Data Settings

• If the direction is From list to external data, you need to choose a database table to receive the data.

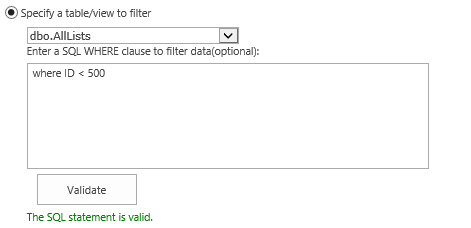

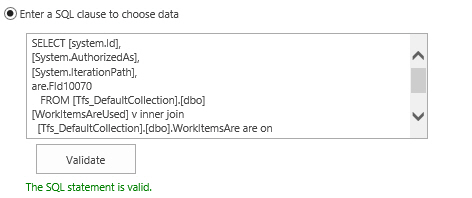

• If the direction is From external data to list, you can specify the connected data by a table, view or a SQL clause.

If the SharePoint 2007/2010/2013/2016/2019/Subscription Edition is chosen as the external data, the Data Settings section will not display.

Note: Personal views will not appear in the drop-down menu.

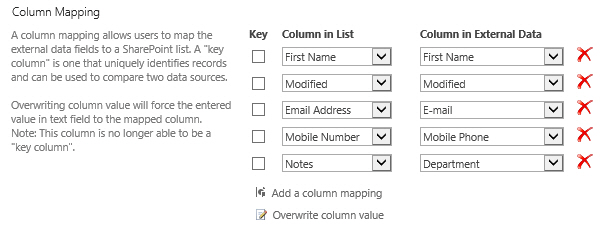

2.2.6 Map column

A column mapping allows users to accurately map the external data fields to a SharePoint list. Also, you can specify key columns to uniquely identify records/items and to compare the data between SharePoint list and external data. You have to specify at least one key column.

Add a column mapping: Map a list column to external field.

Overwrite column value: Overwrite the original target column value.

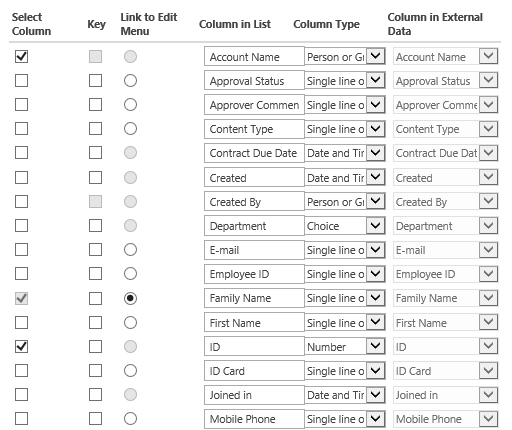

If you specify the direction as From external data to list, and select Create a new list in the List section, then the external fields will be loaded in Column Mapping section, and you can choose which fields will be imported to the list.

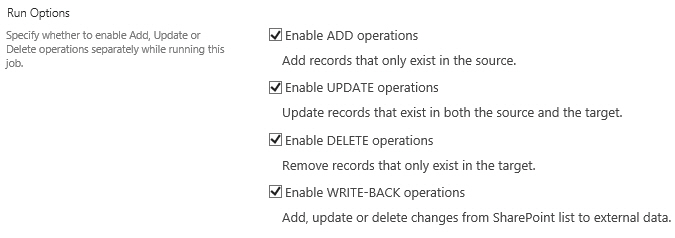

2.2.7 Run Options

You can select what operations to do for the target by enabling/disabling the three options. The Write-back feature will add, update or delete changes from SharePoint list to external data source.

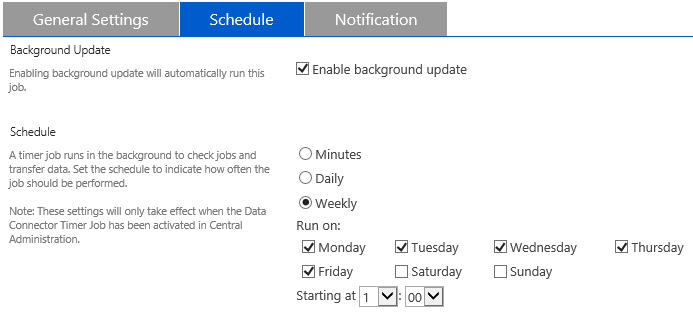

2.2.8 Enable/ Disable Background Update

When Background Update is enabled, Data Connector will run the Data Connector job based on your plan.

2.2.9 Notification

When a job automatically run on background, Data Connector will monitor the process and notify you if an error occurs.

Note: Email notification is available only when Background Update is enabled.

And you can decide if the logging feature turn on, and when the old log files will be deleted.

2.3 Save job

Make sure to save the job before running by clicking the Save button, thus it can be used later.

2.4 Run job

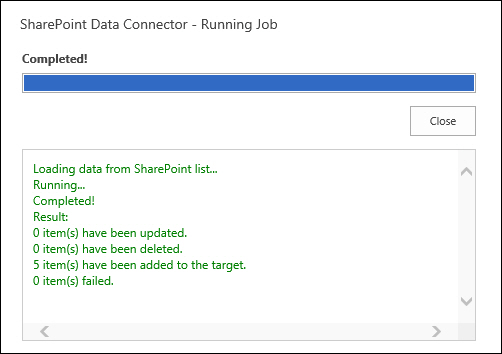

After a job is created in the Data Connector Job Center, you can click to run a job manually. Then you can see the following dialog box, it will show the progress and the result of the running job.
